A ratchet crimping tool for bootlace ferrules is an essential tool for electricians, DIY enthusiasts, and professionals who need secure and reliable wire terminations. Whether you’re working on electrical panels, wiring projects, or industrial applications, a good crimping tool ensures strong, durable, and professional-quality connections.
In this guide, we’ll cover what a ratchet crimping tool is, how it works, why it’s important for bootlace ferrules, how to choose the right one, and tips for proper usage and maintenance.
What is a Ratchet Crimping Tool for Bootlace Ferrules?

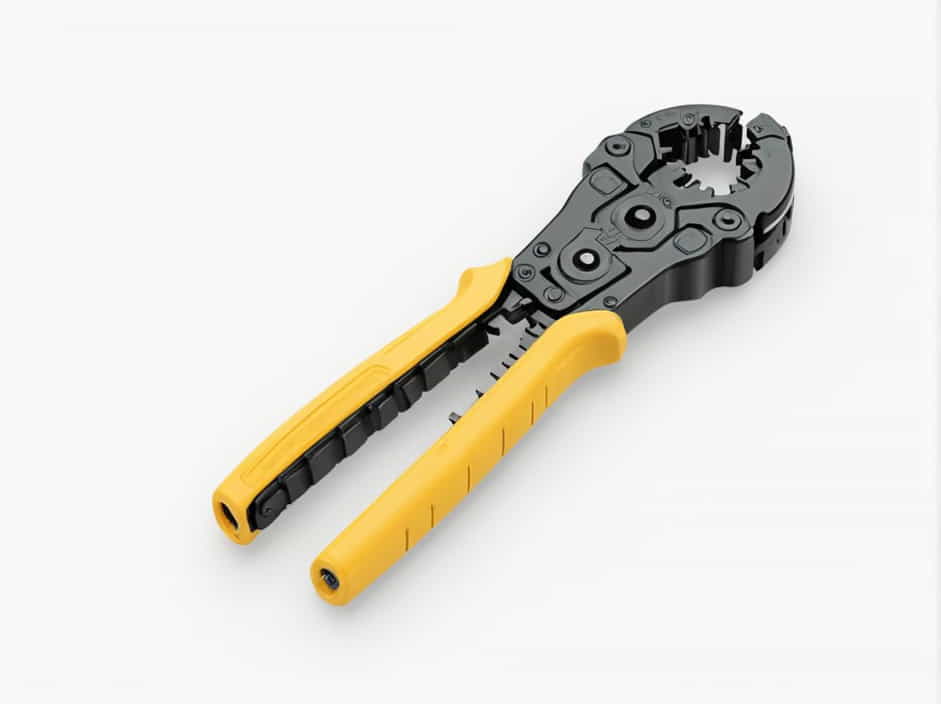

A ratchet crimping tool is a specialized hand tool designed to crimp bootlace ferrules onto the ends of electrical wires. The ratchet mechanism ensures a consistent and uniform crimp, preventing loose or unreliable connections.
What are Bootlace Ferrules?
Bootlace ferrules (also known as end sleeves or wire ferrules) are metal tubes with an insulating collar that are crimped onto stranded wires. They:
-
Prevent wire strands from fraying or breaking.
-
Improve the connection when inserted into terminal blocks or connectors.
-
Provide a secure and professional finish to electrical installations.
How Does a Ratchet Crimping Tool Work?
The ratchet mechanism in the tool ensures a precise crimp by:
-
Applying a controlled amount of pressure to compress the ferrule around the wire.
-
Locking in place until the crimping process is fully completed, ensuring a tight grip.
-
Automatically releasing once the crimp is properly executed.
This design prevents half-crimps or weak connections, making it ideal for electrical and industrial applications.
Why Use a Ratchet Crimping Tool for Bootlace Ferrules?
Using a ratchet crimping tool offers several advantages over traditional crimpers or pliers:
1. Consistent and Secure Crimps
The ratchet mechanism applies uniform pressure, ensuring each crimp is tight and durable. This minimizes the risk of loose wires or poor conductivity.
2. Prevents Wire Damage
Unlike pliers that can over-compress or damage the wire, a ratchet crimper provides the right amount of pressure to securely attach the ferrule without crushing the wire strands.
3. Better Electrical Connections
A properly crimped bootlace ferrule ensures that stranded wires remain intact, leading to better conductivity and reduced resistance in electrical circuits.
4. Ergonomic and Easy to Use
Most ratchet crimpers feature comfortable handles and leverage mechanisms, reducing hand fatigue and making crimping easier, even for prolonged use.
5. Compliant with Electrical Standards
Many electrical codes and standards require the use of bootlace ferrules to ensure safe and professional installations.
How to Choose the Best Ratchet Crimping Tool for Bootlace Ferrules
With so many options available, selecting the right crimping tool can be challenging. Here are key factors to consider:
1. Compatible Ferrule Sizes
Different tools support different ferrule sizes, typically ranging from 0.25mm² to 10mm² or more. Choose a tool that covers the range of ferrules you work with.
2. Adjustable Crimping Pressure
Some ratchet crimpers allow you to adjust the pressure, ensuring a secure fit for different wire sizes and preventing over-crimping or under-crimping.
3. Ergonomic Design
Look for tools with comfortable grips and a lightweight but sturdy build to reduce hand strain during repetitive tasks.
4. Multi-Functionality
Some models come with interchangeable dies, allowing you to crimp different types of connectors beyond just bootlace ferrules.
5. Build Quality and Durability
A high-quality ratchet crimping tool is made from hardened steel, ensuring long-lasting performance and resistance to wear and tear.
6. Brand and Reviews
Choosing a reliable brand ensures better performance. Some top brands for ratchet crimpers include:
-
Knipex
-
IWISS
-
Weidmà¼ller
-
Vastar
-
Engineer PA-21
Check customer reviews and ratings to see how well a tool performs in real-world applications.
How to Use a Ratchet Crimping Tool for Bootlace Ferrules
Step 1: Strip the Wire
-
Use a wire stripper to remove about 10-15mm of insulation from the end of the stranded wire.
-
Make sure the wire strands remain intact and undamaged.
Step 2: Insert the Bootlace Ferrule
-
Slide the correctly sized ferrule over the stripped wire.
-
Ensure the wire fills the metal tube completely without gaps.
Step 3: Place the Ferrule in the Crimping Tool
-
Open the ratchet crimper and position the ferrule into the correct crimping slot.
-
The plastic collar should face outward, while the metal tube aligns with the crimping jaws.
Step 4: Crimp the Ferrule
-
Squeeze the handles firmly until the ratchet mechanism locks and releases automatically.
-
This ensures a secure, professional-grade crimp.
Step 5: Inspect the Crimp
-
Check if the ferrule is properly compressed without deformation.
-
A good crimp should be tight, uniform, and free from cracks.
Step 6: Insert into Terminal Block or Connector
- Once crimped, the ferrule is ready for installation in electrical terminals, distribution blocks, or connectors.
Common Mistakes to Avoid
1. Using the Wrong Ferrule Size
Always match the ferrule size to the wire gauge for the best crimp. Too large or too small ferrules lead to weak connections.
2. Not Stripping Enough Insulation
Stripping too little insulation means the wire won’t fully insert into the ferrule, resulting in a weak crimp.
3. Over-Crimping or Under-Crimping
Adjust the crimper pressure if necessary to avoid crushing the ferrule or leaving it too loose.
4. Skipping the Ratchet Lock
If you release the handles before the ratchet mechanism completes the crimp, the connection may not be properly secured.
How to Maintain Your Ratchet Crimping Tool
1. Regular Cleaning
Wipe the crimping jaws clean after each use to remove debris, dust, or grease that may affect performance.
2. Lubricate Moving Parts
Apply a small amount of machine oil to the ratchet mechanism to keep it operating smoothly.
3. Store Properly
Keep your tool in a dry, dust-free place to prevent rust or damage.
4. Check for Wear and Tear
Inspect the jaws and handles for any signs of wear. Replace the tool if it shows significant damage or reduced efficiency.
Is a Ratchet Crimping Tool for Bootlace Ferrules Worth It?
A ratchet crimping tool for bootlace ferrules is a must-have tool for anyone working with electrical wiring. It ensures secure, durable, and professional-quality crimps, making electrical connections more reliable and safer.
By choosing the right tool, using it correctly, and maintaining it well, you can improve efficiency and precision in all your wiring projects. Whether you’re an electrician, technician, or DIY enthusiast, investing in a high-quality ratchet crimper is a smart choice for long-term performance and convenience.
